TLD7 series
Product image

Spring friction torque limiter | TLD7-618-200W

Specifications

・Allowable rotation speed　 50 minｰ¹
・Application shaft　Φ8 mm
・Torque　196.0 mN･m (1.735 Ibf･in)

Features

・196.0 mN･m (1.735 Ibf･in)
・Various torque selections
・Small size
・Light weight
・Reasonable price

Product lineup

Product name Torque [mN⋅m] (lbf⋅in) Damping direction
TLD7-822-200W 196.0（1.735） Bidirectional

Product information

Product information

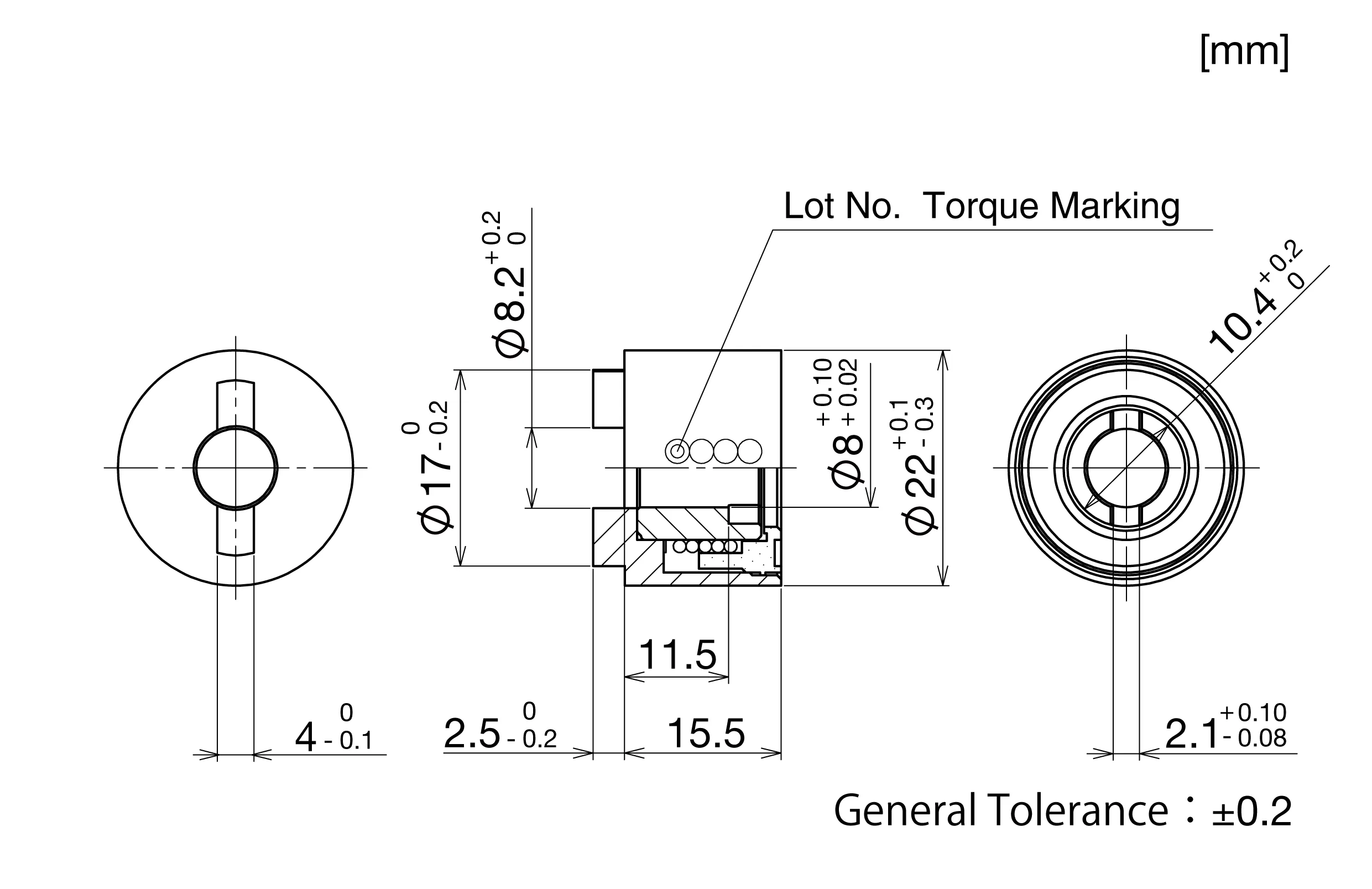

Product information | TLD7 series Torque Limiter

Main materials

Main materials | TLD7 series Torque Limiter

Durability

Tested at allowable rotational speed.

Durability | TLD7 series Torque Limiter



Temperature characteristics

Measured at allowable rotational speed.

Temperature characteristics | TLD7 series Torque Limiter



Speed characteristics

Speed characteristics | TLD7 series Torque Limiter

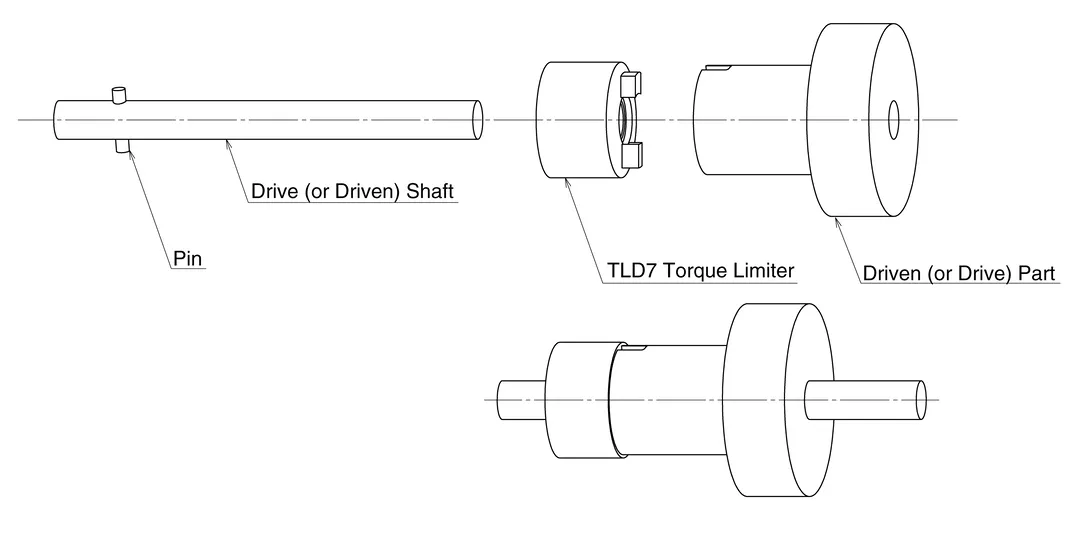

Mounting image

Mounting image | TLD7 series Torque Limiter
